ACT Series
TW Series
PMC Series

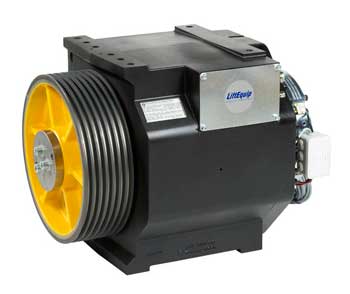

ACT gearless Machine

Permanent magnet synchronous motors with gearless drive. Silent and economical, low consumption, with minimum maintenance and no oils.

TECHNICAL FEATURES
    Load Suspension Pulley
    ≤ 1000 kg 1/1 ≤ Ø 320 mm
    ≤ 2000 kg 2/1 ≤ Ø 320 mm

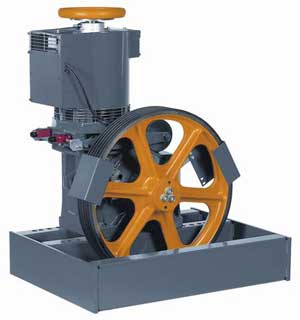

TW series Gearbox Machine

Machine TW 45 C

The Ideal Solution for Light Loads or MRL-Lifts

It provides you: variable motor position (horizontal / vertical), excellent motor control (VVVF), emergency braking system NBS as option, MRL option, continuous smoothness of running, low-wear traction sheave, optimal adjustment to your lift.

Machine TW 45 C - Performance Data
    Rated Load Q Operating Speed v Suspension r
    320 kg 0,63 - 1,20 m/s 1 : 1
    450 kg 0,5 - 1,25 m/s 1 : 1
    630 kg 0,5 - 1,0 m/s 1 : 1
    900 kg 0,4 - 0,63 m/s 2 : 1
    1000 kg 0,4 - 1,0 m/s 2 : 1
    1300 kg 0,4 m/s 2 : 1

Machine TW 63 B

The Machine for Middle Loads

It provides You: variable motor position (horizontal / vertical), excellent motor control (VVVF), emergency braking system NBS as option, continuous smoothness of running, low-wear traction sheave, optimal adjustment to Your lift (rope departure horizontal/vertical).

Machine TW 63 B- Performance Data
    Rated Load Q Operating Speed v Suspension r
    800 kg 0,63 - 2,00 m/s 1 : 1
    1000 kg 0,63 - 1,20 m/s 1 : 1
    1000 kg 0,40 - 1,60 m/s 2 : 1
    1600 kg 0,40 - 1,20 m/s 2 : 1
    2000 kg 0,40 - 0,63 m/s 2 : 1

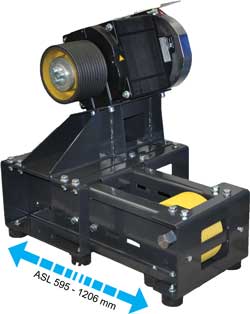

PMC- Gearless machine

PMC-Gearless 125

A smart solution for MRL systems

With the new series, the synchronous Gearless PMC 125 is one of the worldwide most compact drives for the use in MRL systems. The drive PMC 125 is especially for central leaded elevator cars, conceived in 2:1 suspension.

PMC-Gearless 125 - Performance Data
    Rated Load Q Cabin weight F Operating Speed v Suspension r
    450 kg (PMC125S) 925 kg 1,0 m/s 2 : 1
    630 kg (PMC125M) 910 kg 1,0 m/s 2 : 1
    1000 kg (PMC125L) 1740 kg 1,0 m/s 2 : 1

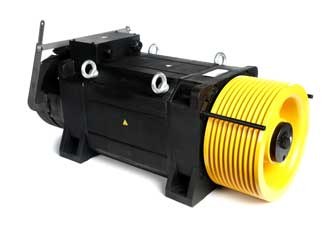

Gearless PMC 170

The most compact gearless machine of its kind in the world

This machine has an outstanding output factor (95%) with 240 switching operations per hour and a duty cycle of 60%. The hardened traction sheave with a diameter of 320 mm is a low wear solution. The machines are delivered with connection cables for the motor, posistor, brake, brake control and for the pulse encoder.

PMC Gearless 170 - Performance Data
    Rated Load Q Cabin weight F Operating Speed v Suspension r
    1000 kg (PMC170S) 1800 kg 1,6 m/s 2 : 1
    1600 kg (PMC170M) 2200 kg 1,0 m/s 2 : 1
    1600 kg (PMC170L) 17220040 kg 1,6 - 1,75 m/s 2 : 1
    1600 kg (PMC170XL) 2200 kg 2,0 m/s 2 : 1
